1Gbps G.hn WD-B1000M-DIN

DIN Rail Industrial Powerline Ethernet Bridge Master

Brief introduction
DIN Rail Industrial PLC Ethernet Bridge Master is a powerline telecommunication product which being developed by WonderTek Technology (KunShan) Co.,LTD., it supports the G.hn protocol and the actual bandwidth up to 400Mbps. Can be used in one phase or 3 phases ,The product has been widely used in many aspect just as railway, mines, industrial telecommunication and metro etc..

1.1 Highlight
1.1.1 Technical parameters
l Support G.hn.
l Industrial DIN rail style installation
l Actual bandwidth up to 400Mbps
l The maximum transfer distance up to 1000 meters
l Self-adapt the rate
l Compatible with all G.hn devices
l One Domain Master can manage 15pcs End Point.
l There can be 16 groups(16 different Domain Master) of PLC telecommunication devices in the same power line circuit
1.1.2 Manageability
l Support Remote Firmware update(TR069)
l 802.3D Ethernet Bridge.
l 802.1Q VLAN.
l Quality of Service(QoS) .
l IGMO(IPv4)Snooping&MLD(IPv6)Snooping
l Support local web management
1.1.3Operating environment
l Working temperature: -40℃-80℃.
l Operating humidity: 10%-85% no condense
l Storage humidity:5%-90% no condense
1.1.4 Design standards
l ITU-T G.9960
l IEC 60529
l IEC 50022
l IEC 60068-2-6
l MIL-STD-810G

1.2 Features
Packet loss:≤0.1%(100M,load 70%)
Support 7*24 hours all weather operation
hardware watch dog function
PING≤2MS
The quantity of the group ≤16pcs
1.3 Immunity of ESD
The testing voltage which the device should be beared: ±6kV direct Discharge, ±8kV air discharge. Discharge number in Each sensitive testing point: Plus-n-Minus 10 times each, Every time the discharge interval is 1 s, according to B/T 17626.2-2006.
1.4 Immunity of electrical fast transient impulse group(Common mode)
The testing voltage which the device should be beared: between the power supply voltage port and ground: ±2.0kV, between signal circuit and ground: ±1.0kV, repetition frequency: 5KHz, test duration: 1 min/ time, testing times: Plus-n-Minus 5 times each. According to GB/T 17626.4-2008.
1.5 Anti interference of surge impact
The testing voltage which the device should be beared: ±2kV, the interval of continuous impulses: 1min/time. Test number: Plus-n-Minus 5 times each. According to GB/T 17626.5-2008.(protection: all models protection and varistor series of discharge tube type)
1.6Anti- vibration
Meet the demand of MX3 in TB1433(0-200Hz,2g acceleration, maximum amplitude 7mm), interface with no loose, device with no Sealing off and drop in the test.

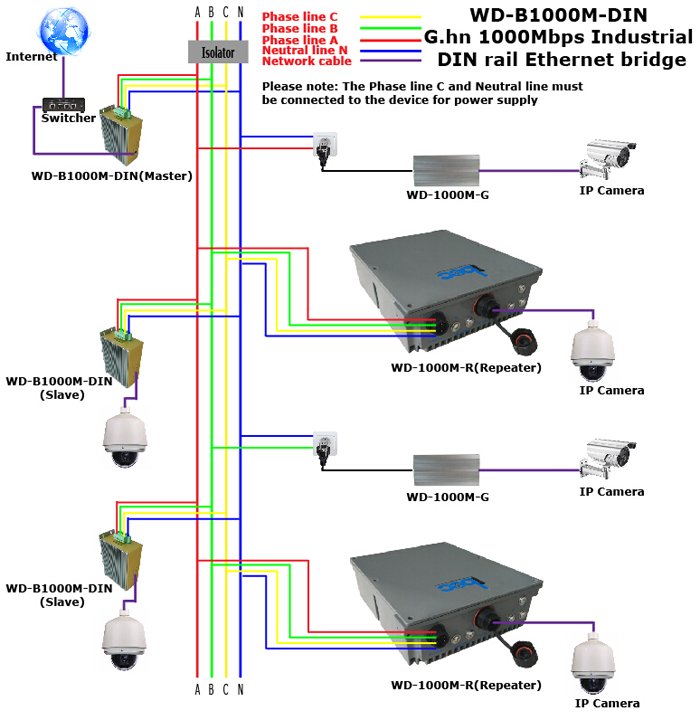

1.7 System topology
